Dynamic Physical Projects

This is a gallery of all the physical projects I have worked on with dynamic elements, from complex automata to lamps to interactive experiences.

Concealed Pulley Bevel Gear

3-D Printing, Modulan, Elastic, Wood

Carboard prototype of reimagined bevel gears.

Carboard prototype of reimagined bevel gears.

A dimensioned engineering drawing of my reimagined bevel gears.

A dimensioned engineering drawing of my reimagined bevel gears.

Exploded view of mechanism.

Exploded view of mechanism.

Assorted Other Mechanisms

  • Double Follower Cams

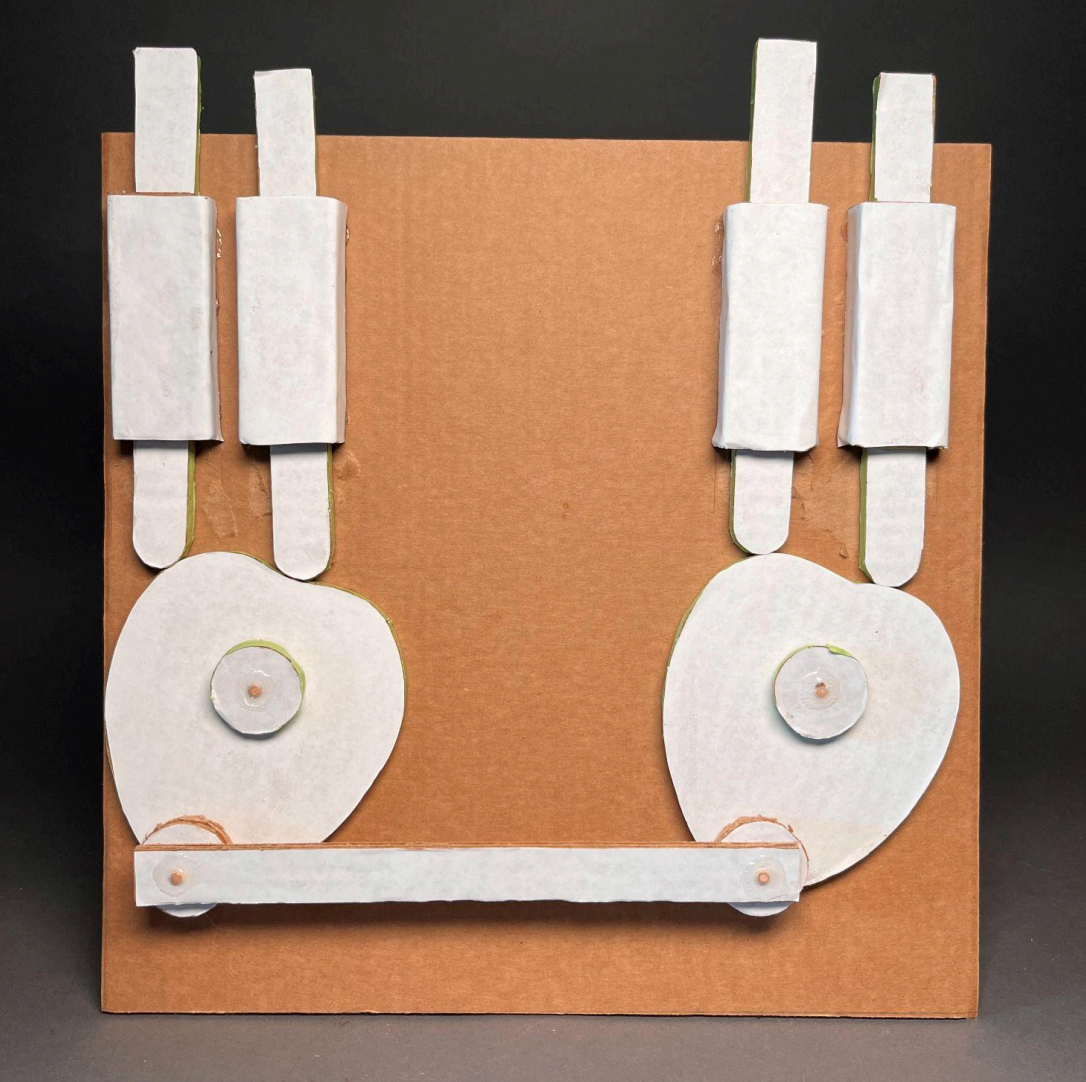

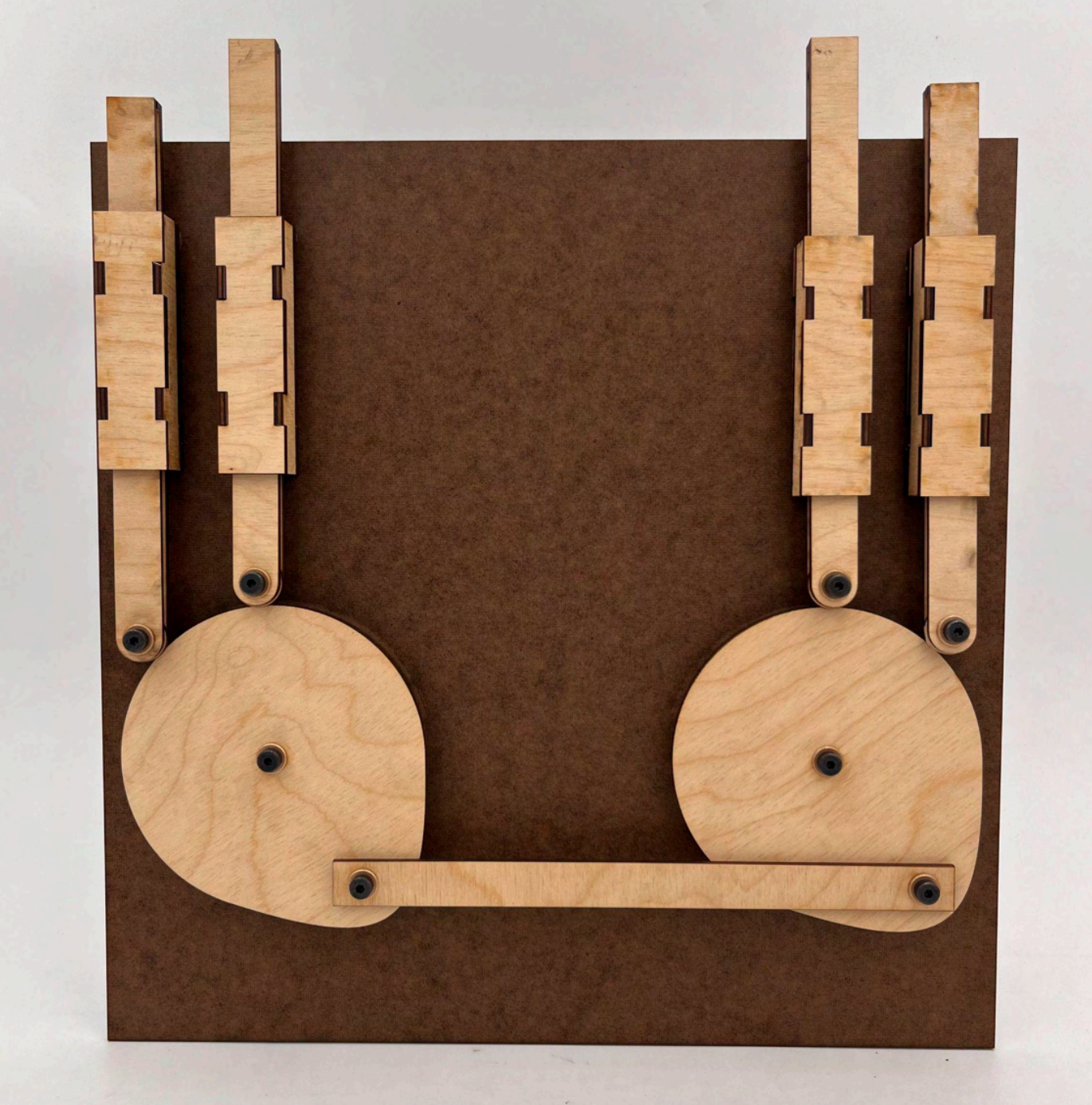

  • Double Follower Cams, prototype

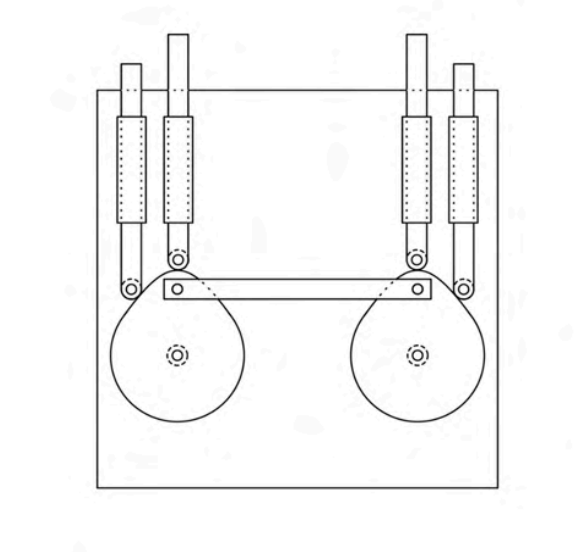

  • Double Follower Cams, non-dimensioned CAD rendition

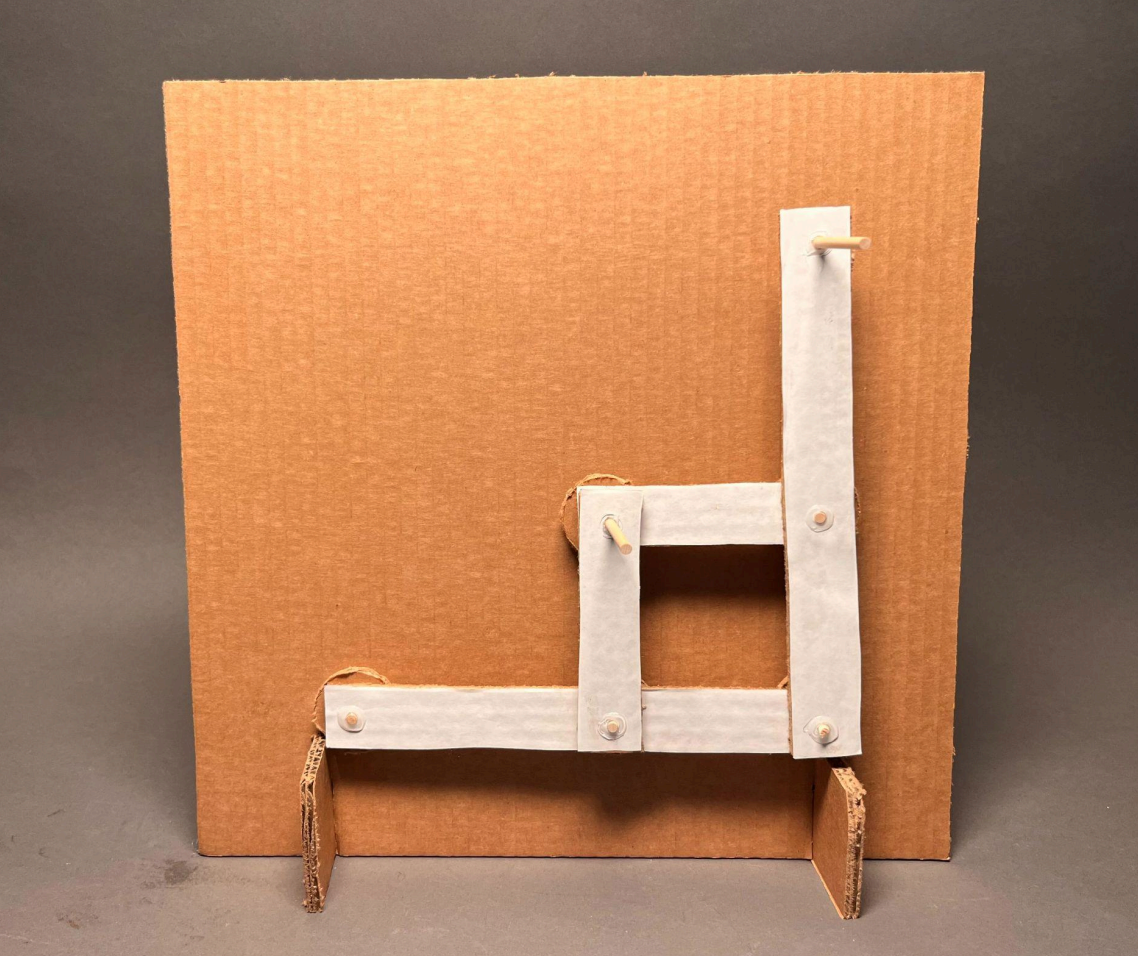

  • 4 Bar Linkage

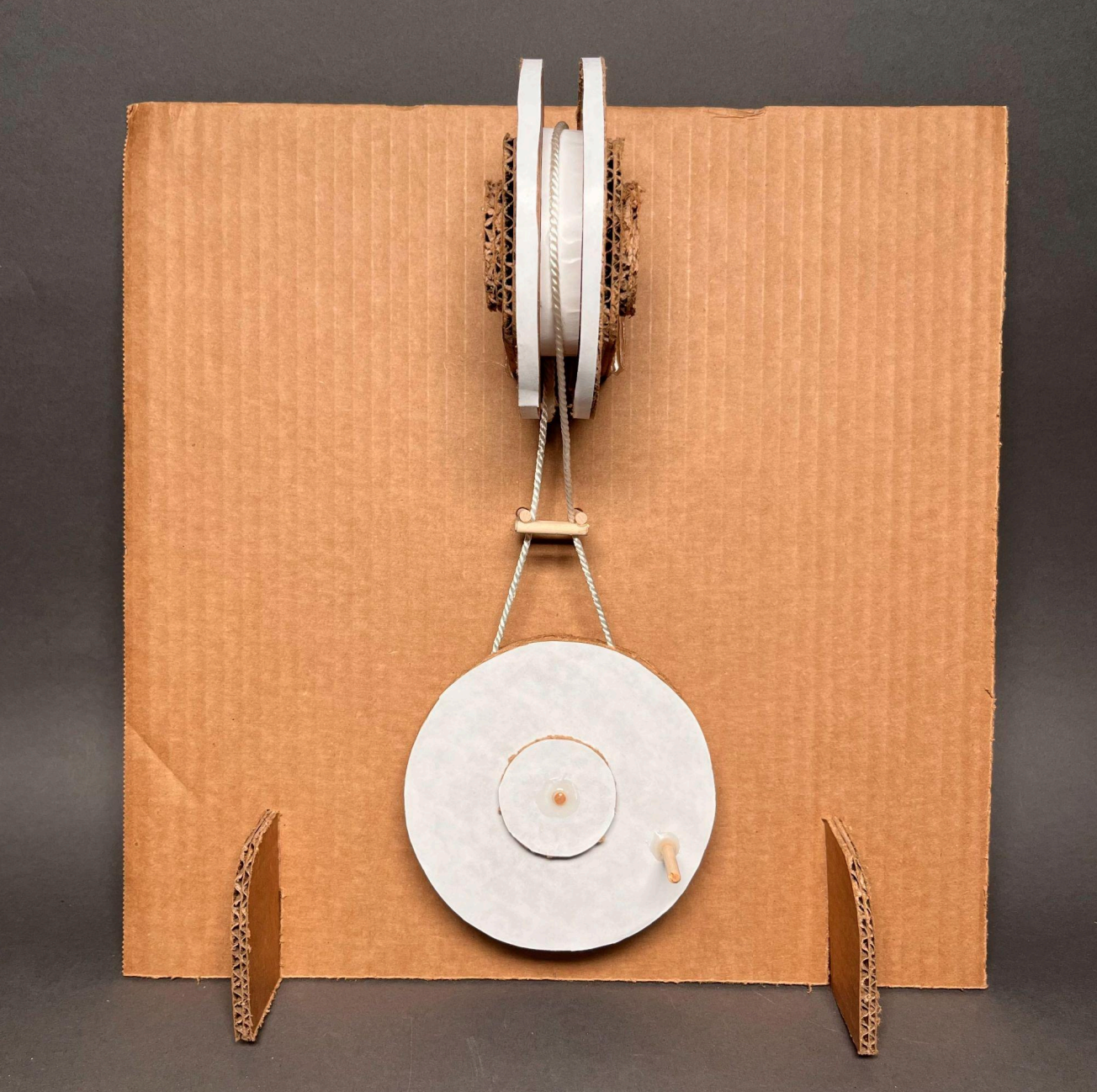

  • Pulley and Belt

Portrait of Woman

Brass, Steel, Paper Maché, Wood

A lamp with a sand-cast, carefully polished base in the form of a woman, with a lampshade composed of steel rods welded into shape and sheathed with paper maché.

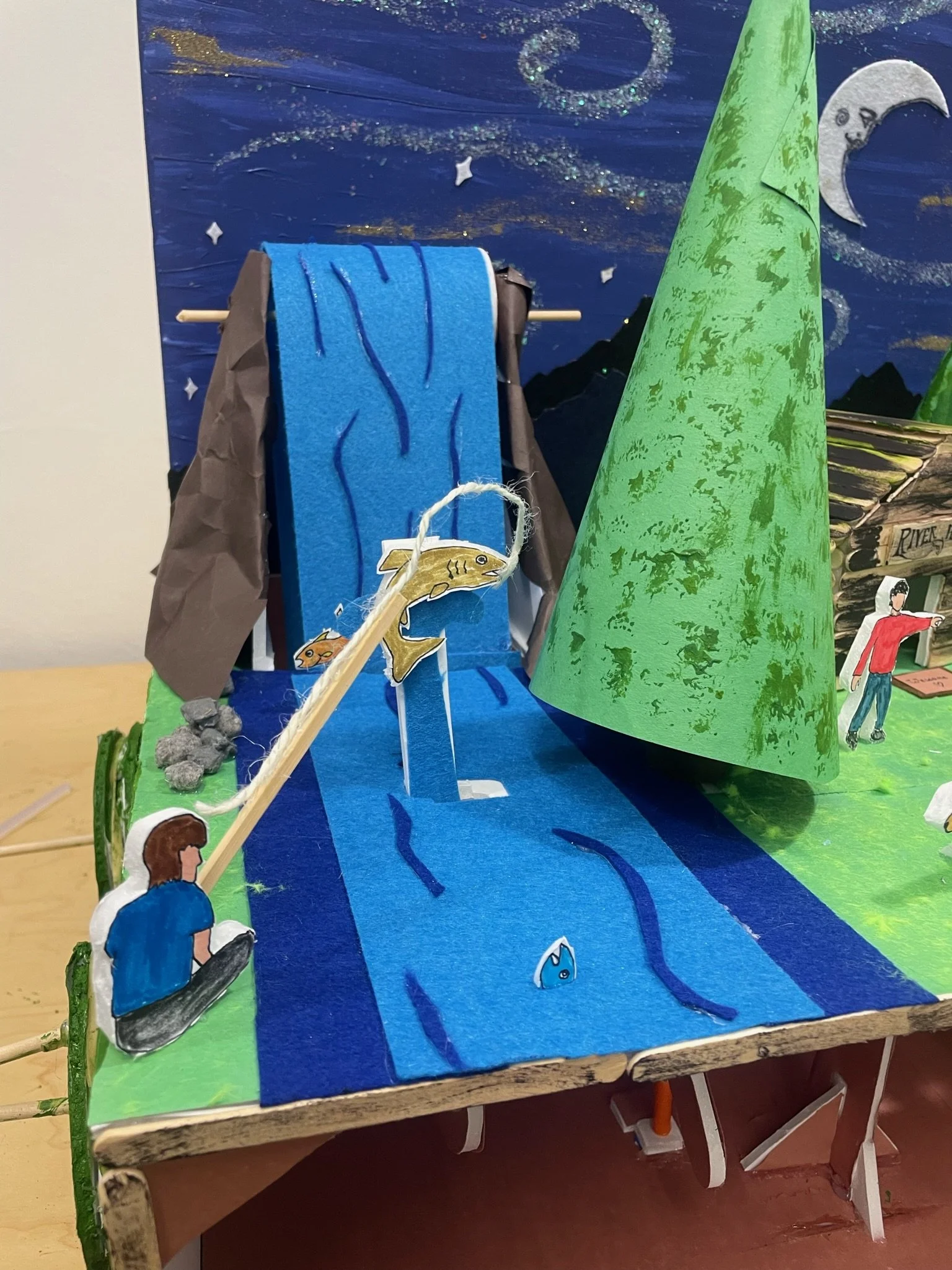

Bigfoot Automata

Using foamcore, colored paper, paint, and yarn, my partners and I created a working automata featuring cams, shakers, sliders, and other mechanisms to physically animate a scene of bigfoot prowling through the woods.

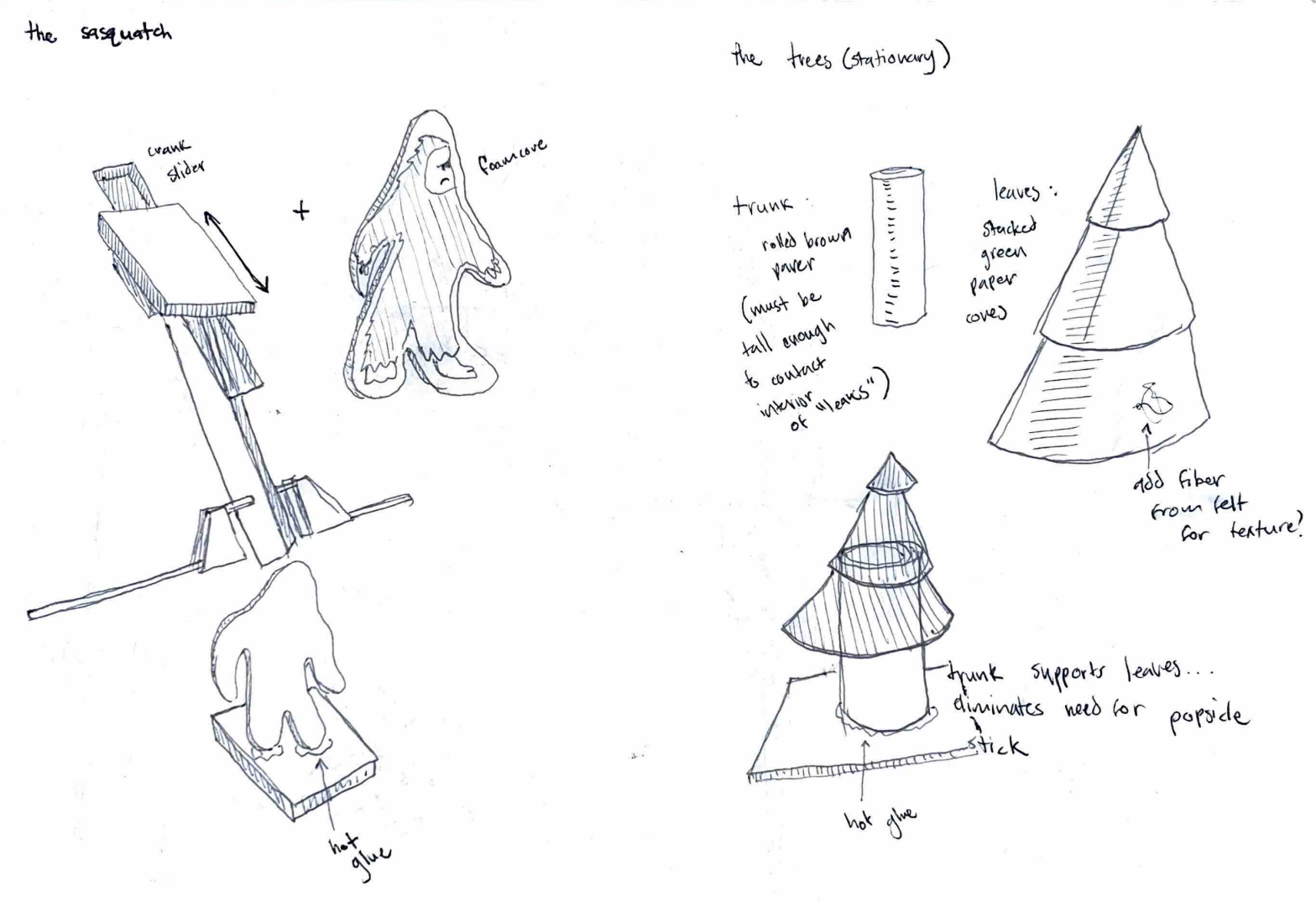

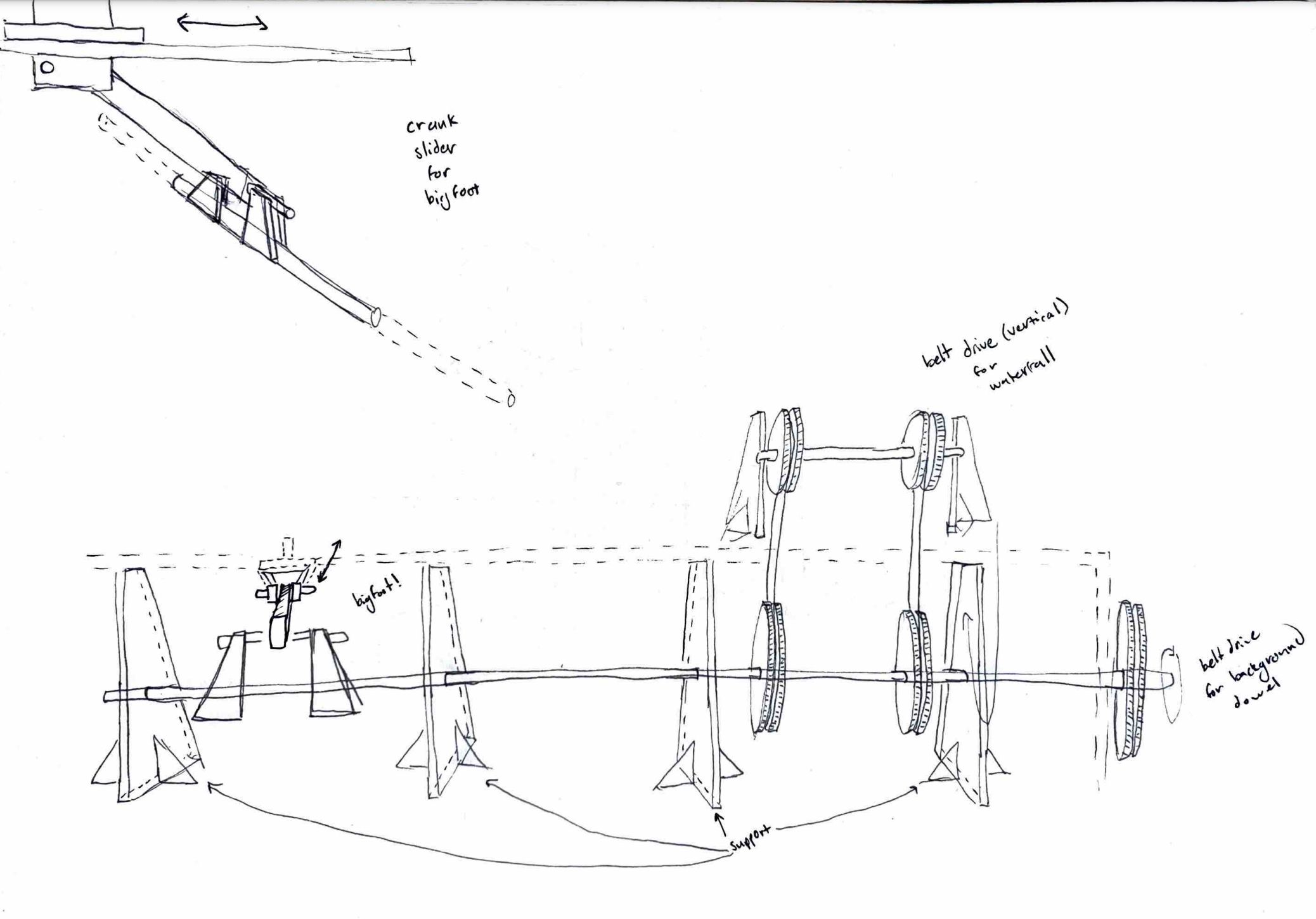

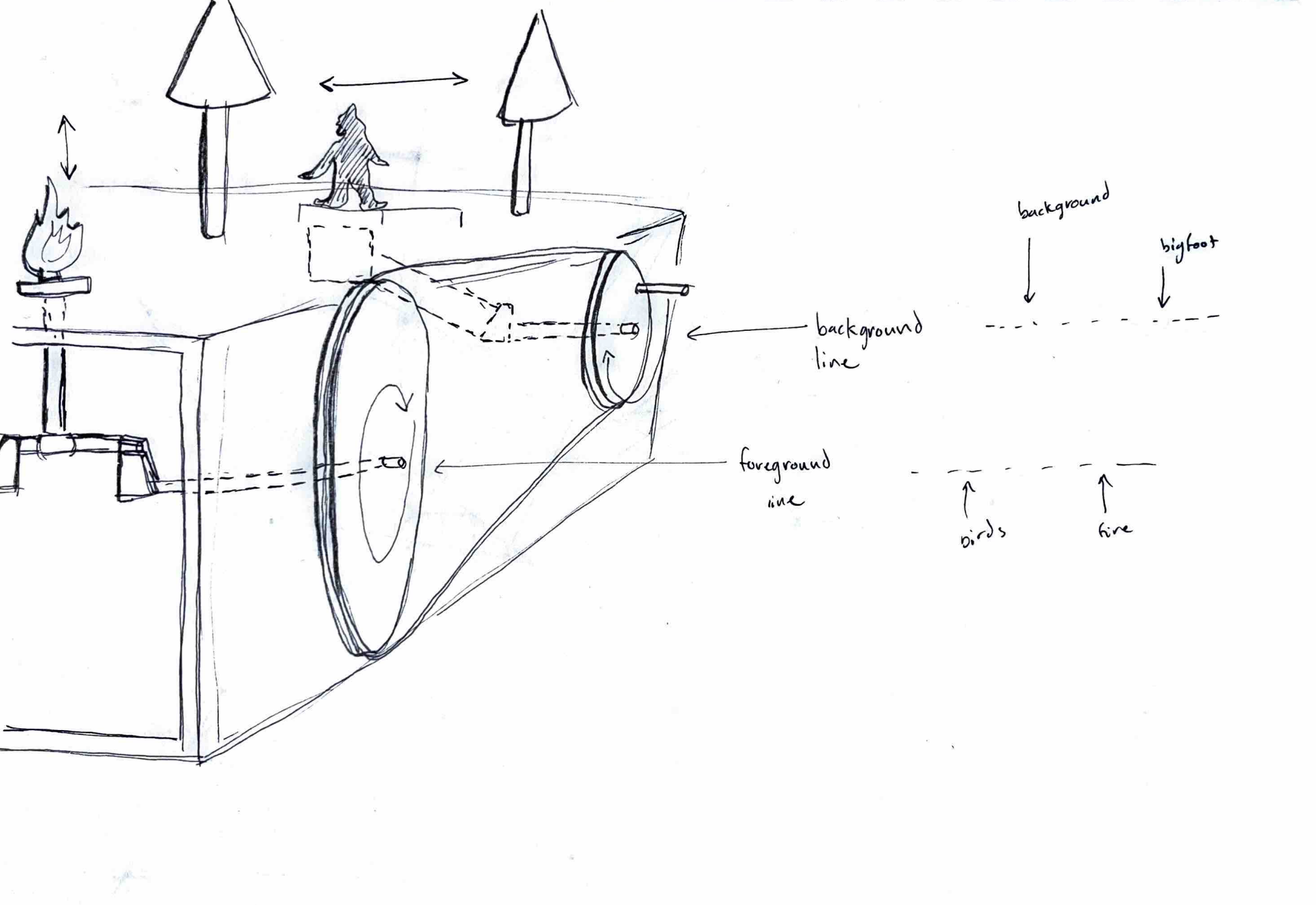

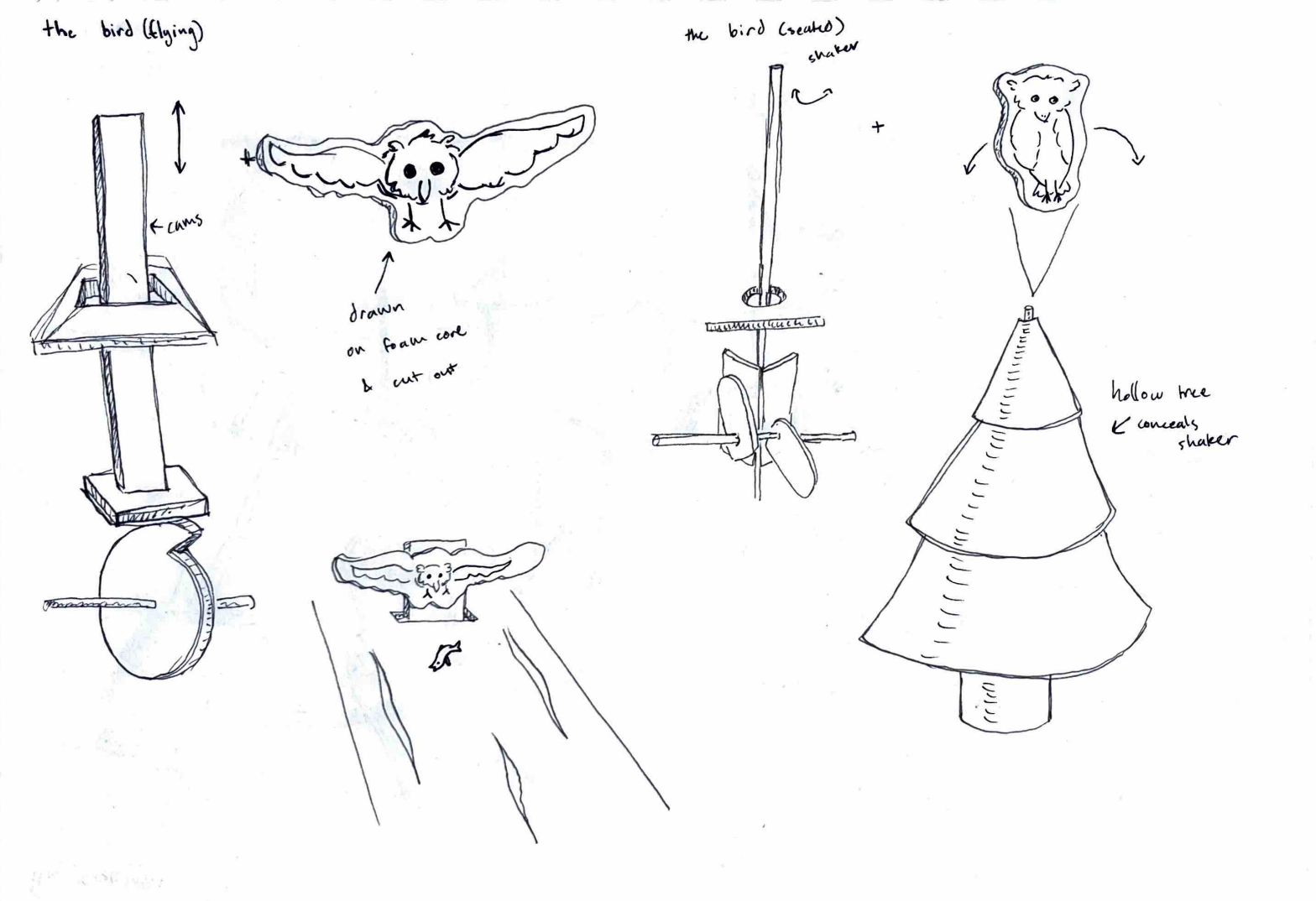

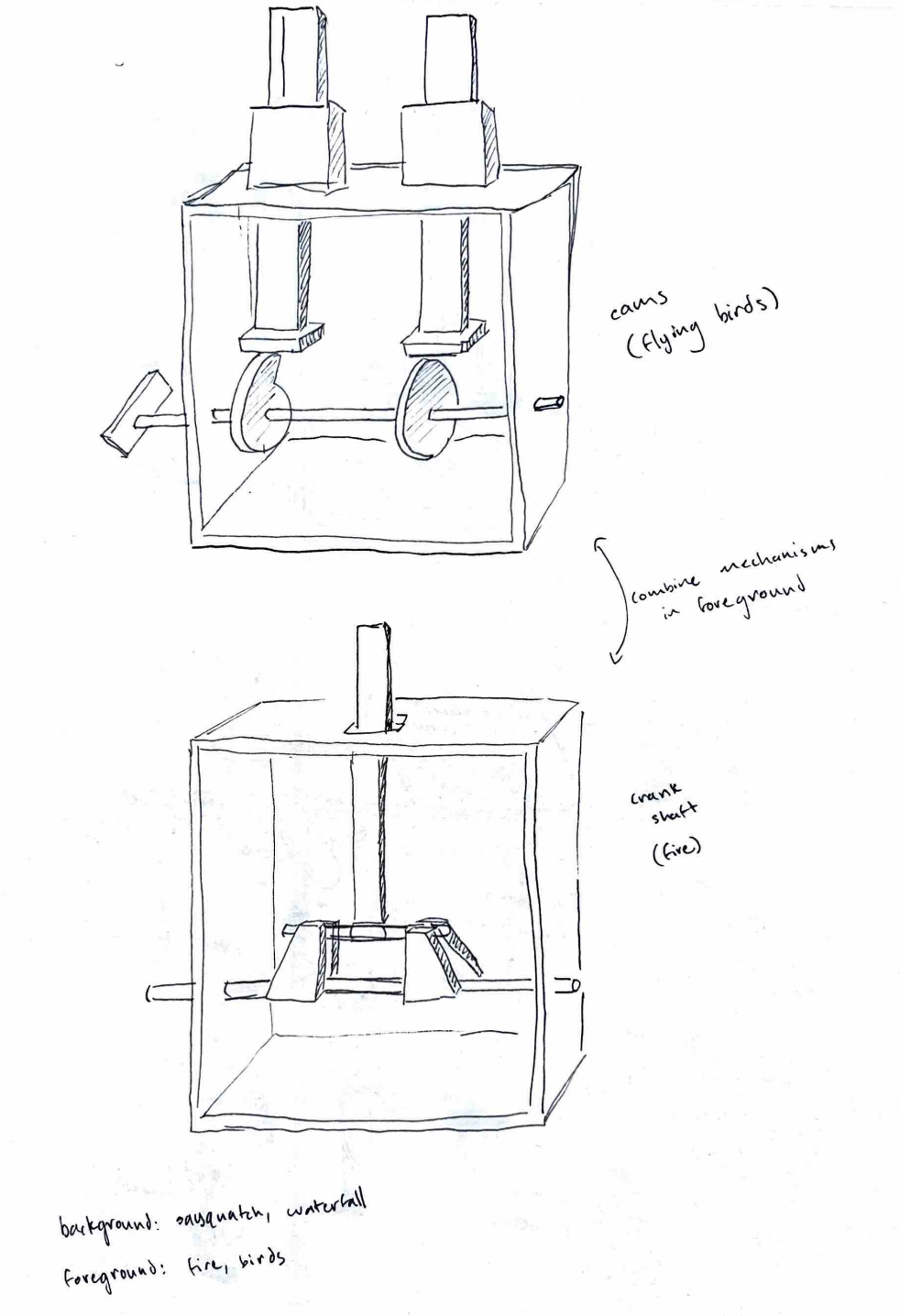

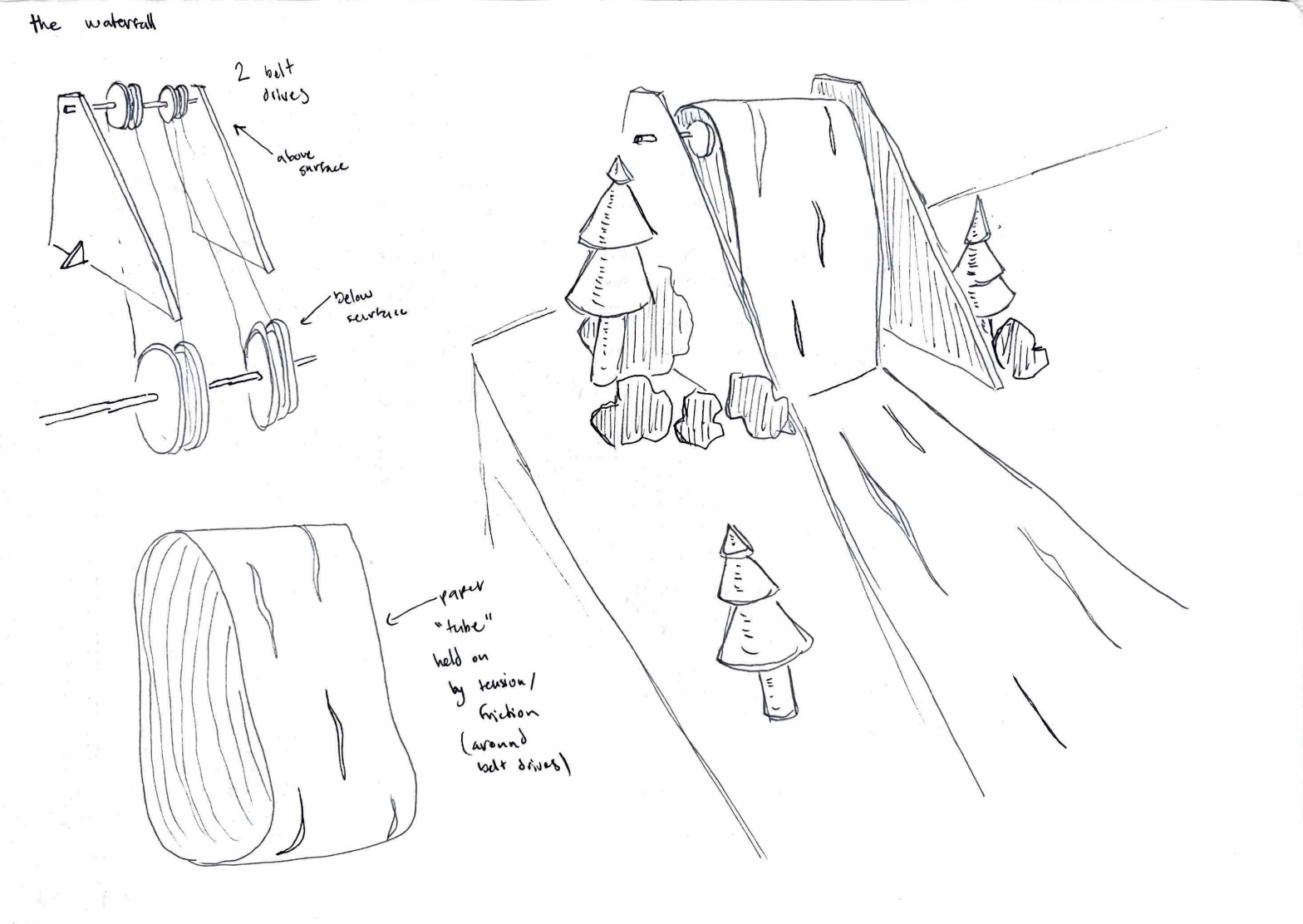

Project Sketches

Coho Chat Board

A summary of the work a partner and I did as we tackled the problem of fostering a sense of community in shared spaces.
